INSTALLATION
DOWN LIGHT

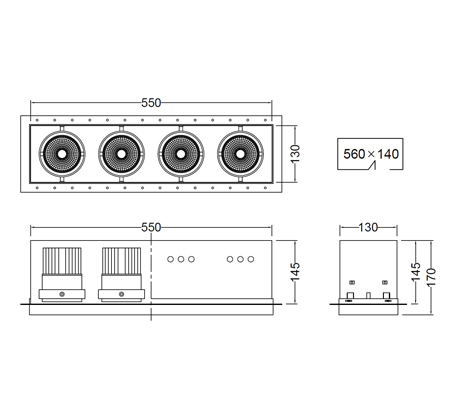

SIZE
W550 x D130 x H170mm
CUT HOLE
560 x 140mm
POWER
10W, 15W, 20W, 25W, 30W
CCT
3000K, 4000K, 5000K
BEAM ANGLE
36˚
CRI
80↑
FINISH COLOR
WHITE / BLACK
BODY MATERIAL
Steel
REFLECTOR
PC
COVER
PC
INPUT VOLTAGE
AC 220V / 50~60Hz
OUTPUT VOLTAGE
DC 36V
POWER FACTOR
90↑
IP RATING
20
OPERATING TEMPERATURE
-20 to +40℃
ETC
Dali, 0-10, 1-10, Triac Dimming
